Model：JXFSTPRP-15
Brand：Shanghai Jingxin?
Specifications ：Taiwan
Introduction：Multi-channel microbial magnetic bead homogenizer (patented product, counterfeiting must be punished! ZL2018300207398), also known as microbial magnetic bead pulverizer, bacterial magnetic bead grinder.
Multi-channel microbial magnetic bead homogenizer (patented product, counterfeiting must be punished! ZL2018300207398), also known as microbial magnetic bead pulverizer, bacterial magnetic bead grinder.
Scope of application：
1. Prokaryote: bacteria, actinomycetes, spirochetes, mycoplasma, rickettsia, chlamydia.
2. Eukaryotes: fungi, algae, protozoa.
3. Non-cellular categories: viruses and subviruses.
Features:
1. It can process 1-96 fluxes of bacteria or other microorganisms in batches of homogenization and grinding at the same time within a few minutes. Quickly release DNA, RNA, protein, plasmids, etc., and the efficiency is more than 20 times higher than that of traditional homogenate crushing methods.
2. According to the temperature requirements of the sample, there is a special low temperature adapter, which can easily realize the cracking and crushing under the conditions of liquid nitrogen and low temperature.
3. There is no cross-contamination, and it is in a fully enclosed state during the crushing process, and disposable centrifuge tubes and beads can be used. The sample is kept in the tube completely to avoid cross-contamination between samples and external contamination.
4. The repeatability is good, the same procedure is set for the same tissue sample, and the same grinding and crushing effect is obtained.
5. The working time is short and the sample temperature will not rise.

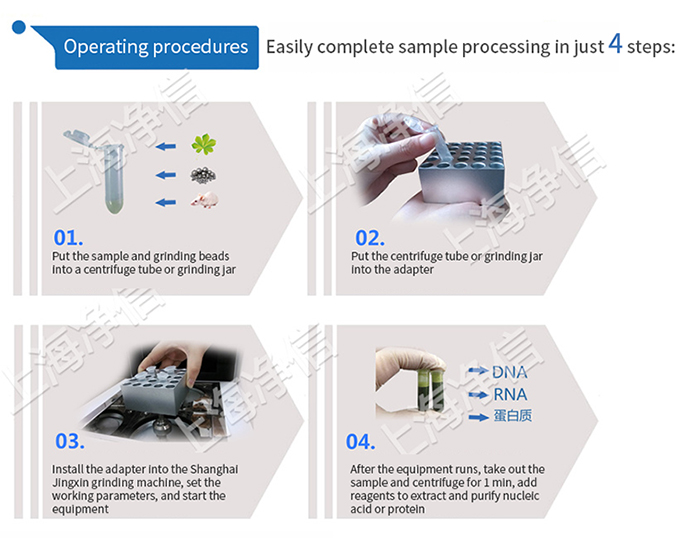

Operating procedures：
Product parameters：
The main parameters | Parameter range |
Application | Cracking, crushing, grinding, dispersing and homogenizing in the field of microorganisms |
Sample processing: | Processing capacity within 15 seconds can process 24 samples at the same time, including 12-position and 24-position liquid nitrogen refrigeration adapters |
Compatible sample volume | 24*(0.2-0.5ML) /24*2ML /8*(5-15)ML /4*25ML /2*50ML, various specifications of grinding tubes can be customized, or it can be expanded to 96*2ml or 48 *2ML. |
Touch screen display: | Large-size touch screen display, convenient and intuitive operation |
Storing data: | Ten sets of experimental data can be stored, according to different experimental samples. |
Feed size | No requirement, adjust according to adapter |
Discharge size | ~5μm |
The number of grinding platforms (the number of grinding tanks that can be accepted) | >2 |
Fastening device with automatic center positioning | Yes |
Homogenization speed: | 0—7000RPM/S, working time: 0 seconds to 9999 minutes, users can set by themselves; |
Diameter of crushed magnetic beads: | 0.1-30mm, based on different samples, appropriate adjustments, refer to the sample processing database manual |
accelerate: | Achieve greater speed in 2 seconds |
Decelerate | Achieve greater speed in 2 seconds |
Noise level | <55db |
Grinding method: | Wet grinding, dry grinding and low temperature grinding are all available |
Refrigeration: | Has the ability to upgrade to ultra-low temperature liquid nitrogen refrigeration or air refrigerator refrigeration |
Adapter material: | PTFE or alloy steel |
Full protection: | Fastening device with automatic center positioning, safety lock when working, full protection |
Grinding kit material: | Hard steel, PTFE (Teflon) zirconia |
Dimension | 280*400*530 |
Weight | 23KG |
